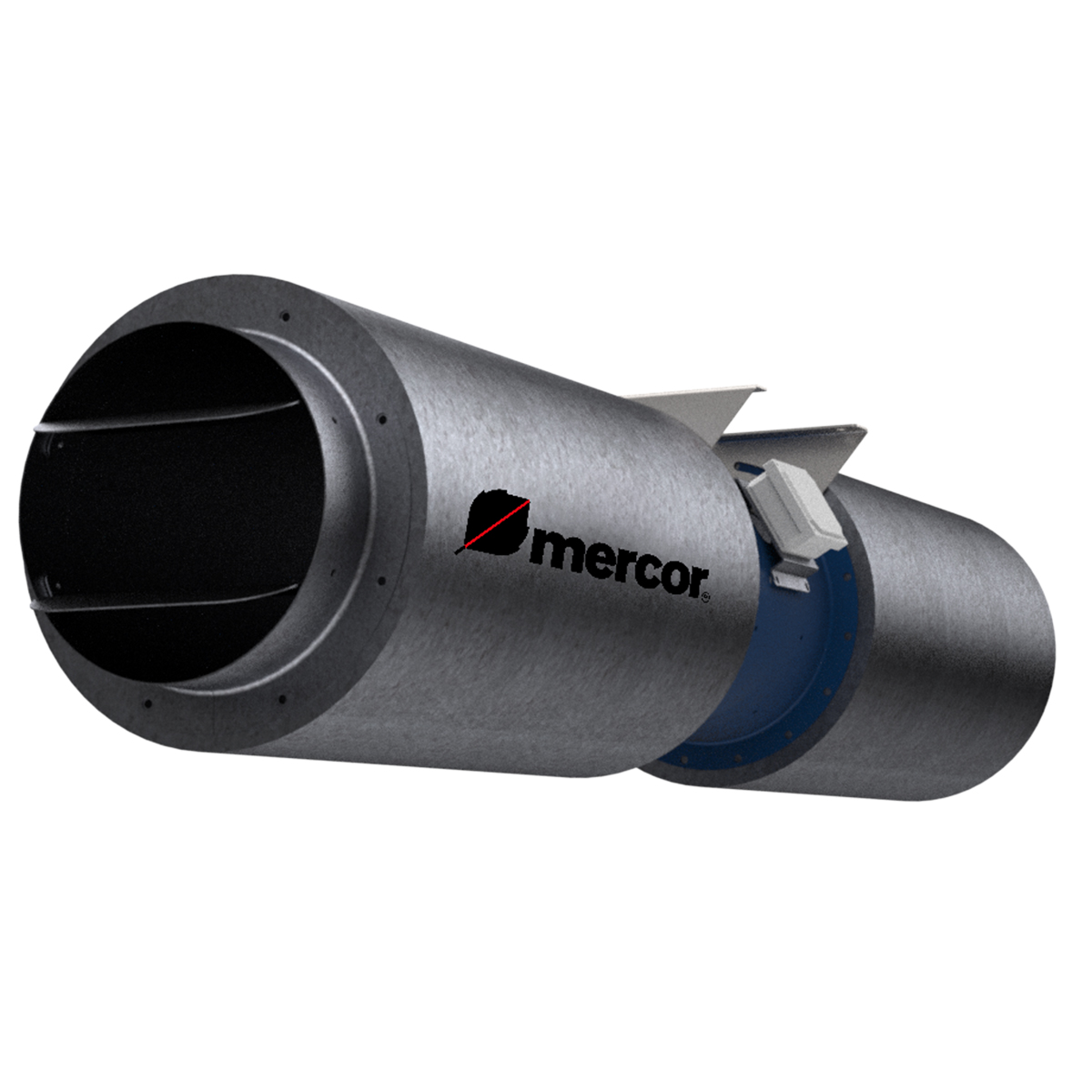

mcr BORA C

mcr BORA C

Smoke Exhaust Jet Fan

Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7527

The mcr BORA C axial jet smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings. The device is intended for indoor use. Dedicated for underground car parks and effective removal of contaminated air in large spaces. The optimal fan shape minimizes the installation height required.

Technical data:

•          Dimensions: D290 - 560 [mm]
•          Protection rating: IP 55
•          Nominal power: 0.55 kW – 22 kW
•          Rotational speed: 1500; 3000 rpm
•          Operating mode: unidirectional, reversible
•          Execution type: single-speed, two-speed

Additional information:

•          Operation in the smoke reservoir
•          Painted or galvanized housing
•          Quiet operation
•          Reinforced steel housing
