mcr FEN C/BO

mcr FEN C/BO

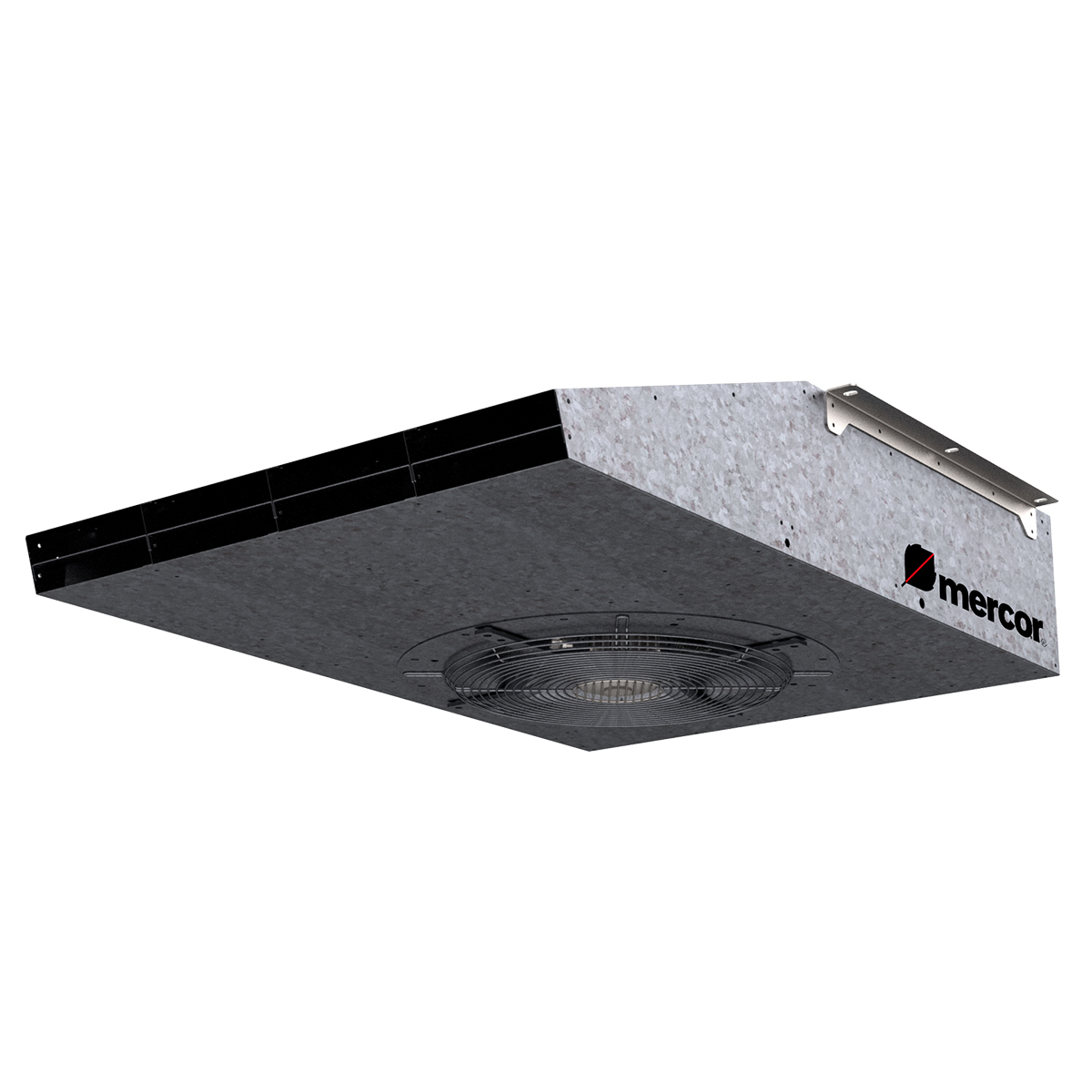

Jet Impulse Supply/Exhaust Fan

Fire resistance class: no resistance

Declaration of conformity: DZ

The mcr FEN C/BO jet impulse supply/exhaust fan is designed for single or two-speed operation for extracting (conveying) air in buildings. The device is intended for indoor use in a horizontal position.

Technical data:

•         Dimensions: D560 [mm]
•         Protection rating: IP 55
•        Nominal power: 1.1 kW – 2.2 kW
•         Rotational speed: 750; 1500 rpm
•         Operating mode: unidirectional
•         Execution type: single-speed, two-speed

Additional information:

•          Operation in the smoke reservoir
•          Low device height – 352 mm
•          Galvanized steel sheet housing
