mcr FEN C (F400)

mcr FEN C (F400)

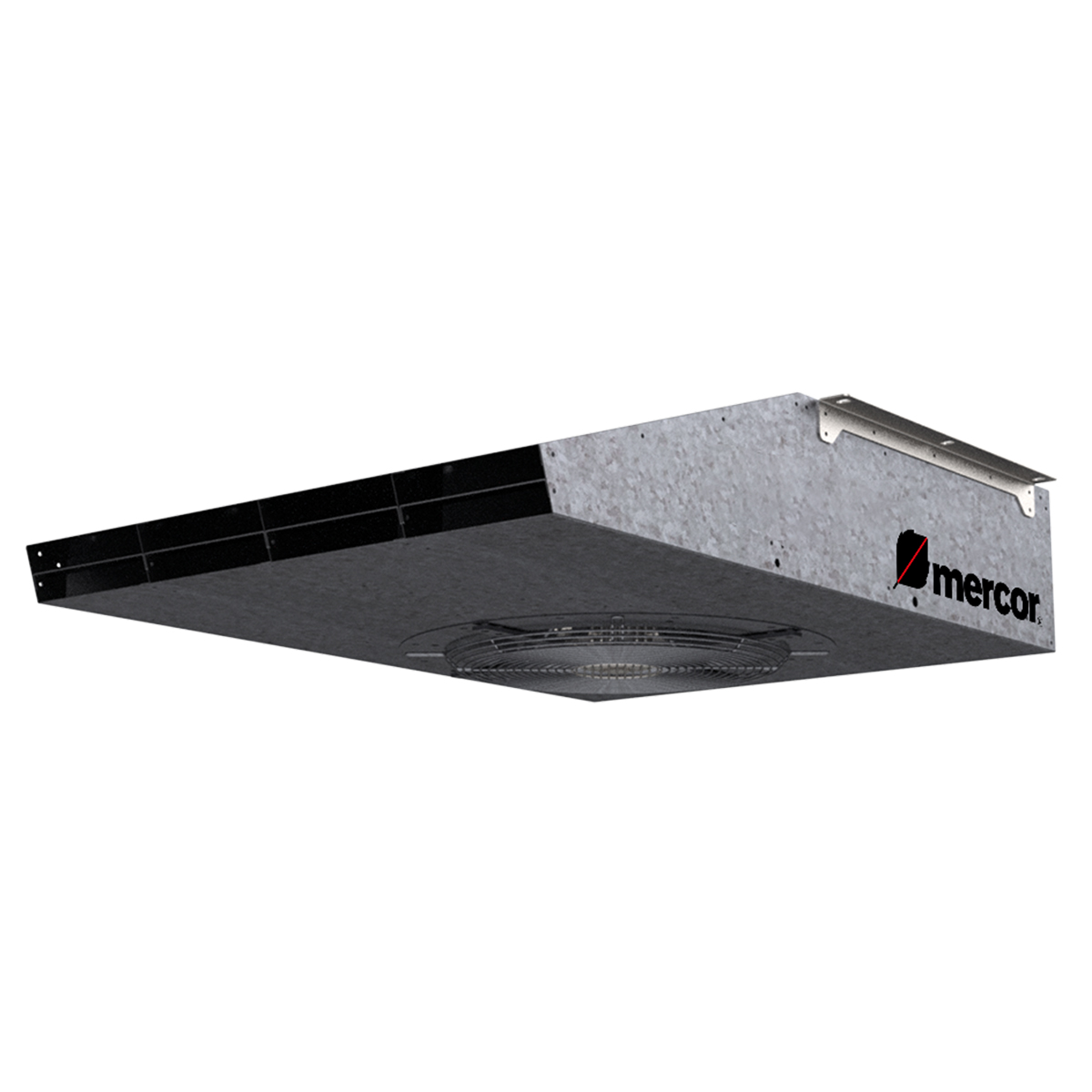

Impulse Smoke Exhaust Jet Fan

Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7526

The mcr FEN C (F400) jet impulse smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings during a fire. The device is intended for indoor use in a horizontal position. Thanks to its design, the fan directs air or smoke in a specific direction, imparting the appropriate flow velocity, enabling precise smoke extraction from designated spaces.

Technical data:

•          Dimensions: D500; 750; 1000 [mm]
•          Protection rating: IP 54/55
•          Nominal power: 0.2 kW – 2.2 kW
•          Rotational speed: 1500 rpm
•          Operating mode: unidirectional
•          Execution type: single-speed, two-speed

Additional information:

•          Operation in the smoke reservoir
•          Low device height – 352 mm
•          Galvanized steel sheet housing
