mcr MONSUN F-CCT

mcr MONSUN F-CCT

mcr MONSUN F-CCT

Axial Supply/Exhaust Fan



Fire resistance class: no resistance

Declaration of conformity: DZ

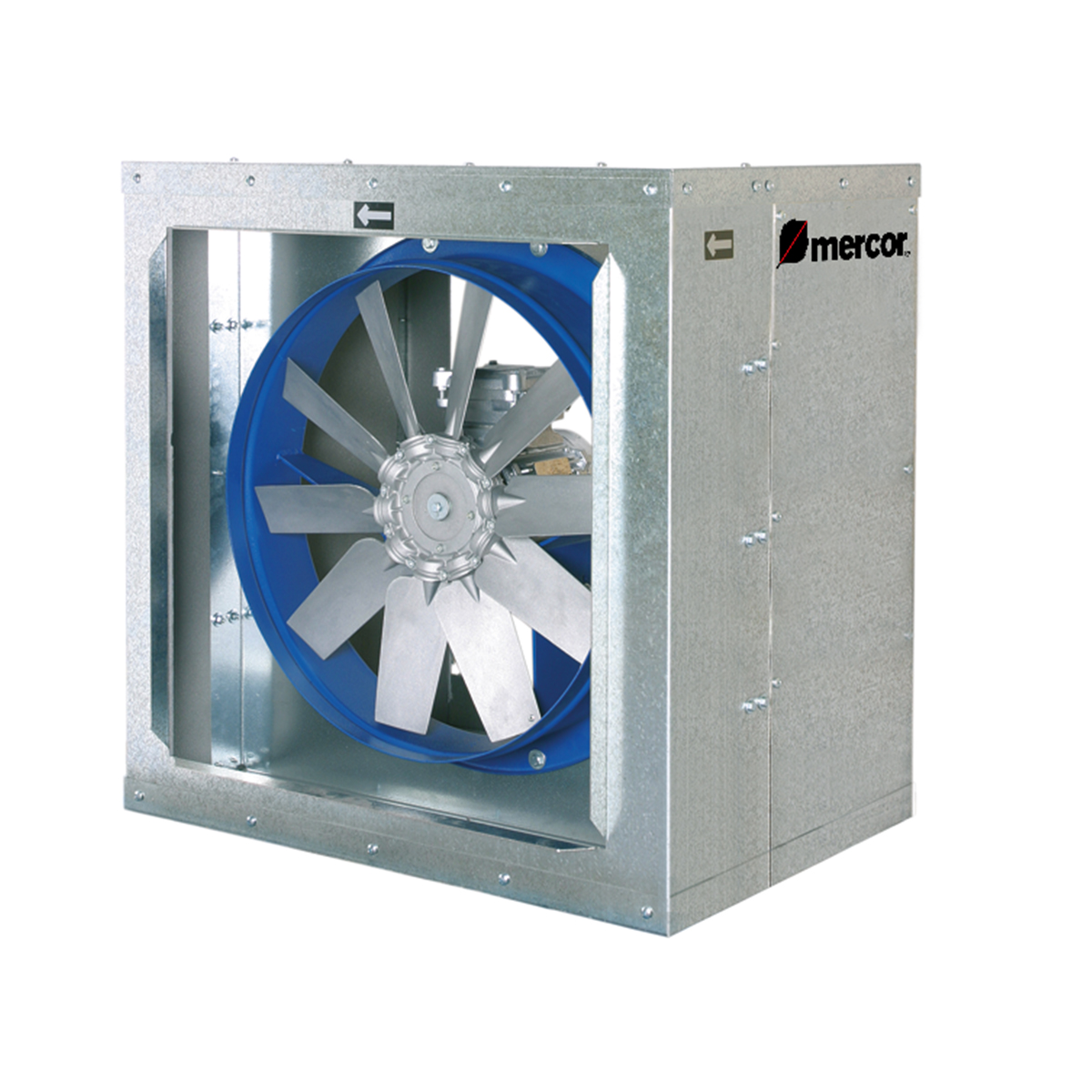

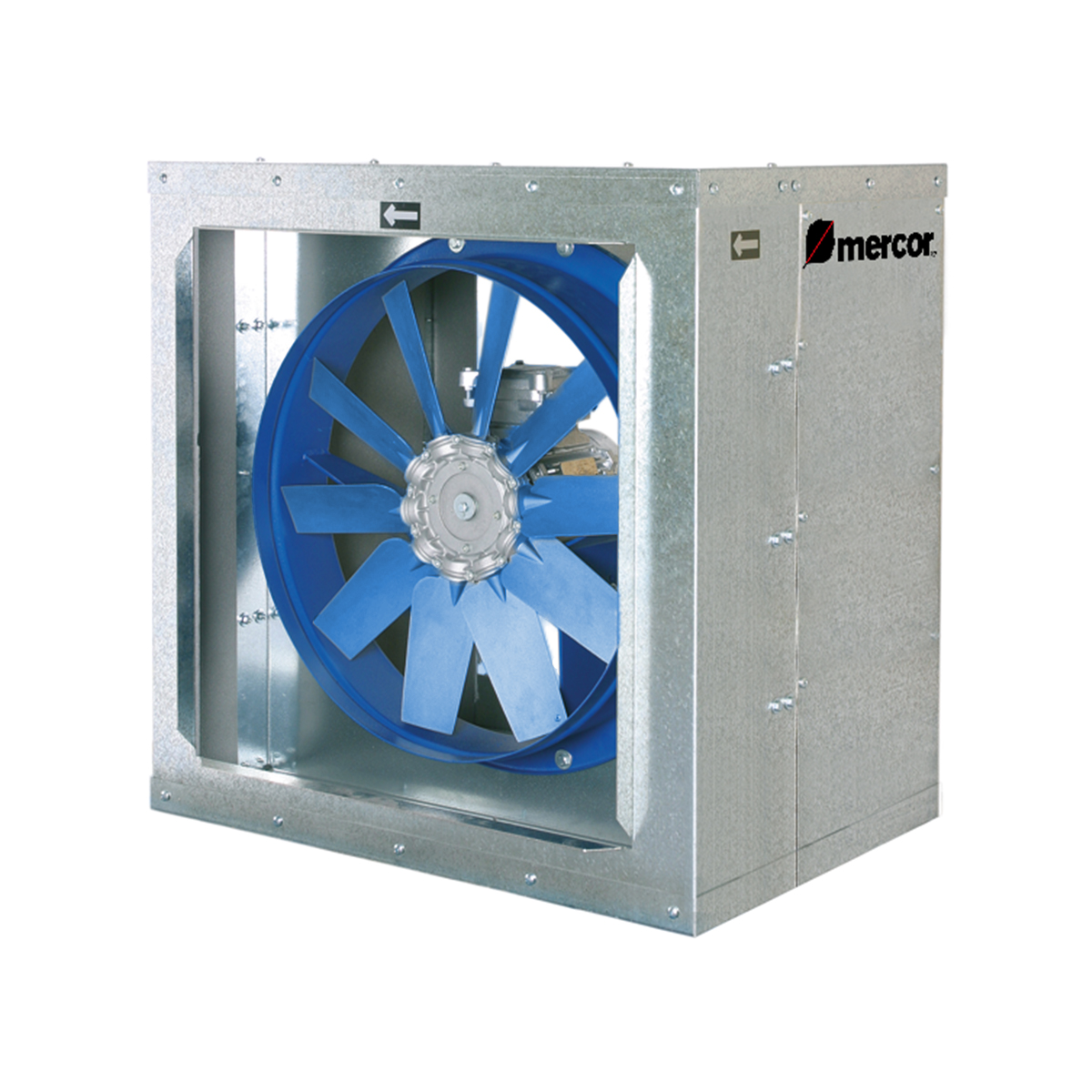

The mcr MONSUN F-CCT axial supply/exhaust fan is designed for single or two-speed operation for extracting (conveying) air in buildings. The fan housing is made of sheet metal with a sound-absorbing box and thermal insulation; the housing has removable panels for easier service access.



Technical data:

  •          Dimensions: D560 – D1000 [mm]
  •          Protection rating: IP 54/55
  •          Nominal power: 0.55 kW – 20 kW
  •          Rotational speed: 750; 1000; 1500; 3000 rpm
  •          Operating mode: unidirectional, reversible
  •          Execution type: single-speed, two-speed



Additional information:

  •          Operation in the smoke reservoir
  •          Box-type housing, thermally and acoustically insulated
  •          Aluminum or PVC impeller
Code Name
mcr MONSUN F-CCT 45 M4 (A0:6)
mcr MONSUN F-CCT 45 M4 (A5:6)
mcr MONSUN F-CCT 45 T4 (A0:6)
mcr MONSUN F-CCT 45 T4 (A5:6)
mcr MONSUN F-CCT 45 T6 (A0:6)
mcr MONSUN F-CCT 45 T6 (A5:6)
mcr MONSUN F-CCT 50 M4 (A0:6)
mcr MONSUN F-CCT 50 M4 (A5:6)
mcr MONSUN F-CCT 50 T4 (A0:6)
mcr MONSUN F-CCT 50 T4 (A5:6)
mcr MONSUN F-CCT 50 T6 (A0:6)
mcr MONSUN F-CCT 50 T6 (A5:6)
mcr MONSUN F-CCT 56 M4 (A2:6)
mcr MONSUN F-CCT 56 M4 (A2:9)
mcr MONSUN F-CCT 56 M4 (A5:6)
mcr MONSUN F-CCT 56 T4 (A2:6)
mcr MONSUN F-CCT 56 T4 (A2:9)
mcr MONSUN F-CCT 56 T4 (A5:6)
mcr MONSUN F-CCT 56 T6 (A2:6)
mcr MONSUN F-CCT 56 T6 (A2:9)
mcr MONSUN F-CCT 56 T6 (A5:6)
mcr MONSUN F-CCT 63 M4 (A2:6)
mcr MONSUN F-CCT 63 M4 (A2:9)
mcr MONSUN F-CCT 63 M4 (A5:6)
mcr MONSUN F-CCT 63 T4 (A2:6)
mcr MONSUN F-CCT 63 T4 (A2:9)
mcr MONSUN F-CCT 63 T4 (A5:6)
mcr MONSUN F-CCT 63 T6 (A2:6)
mcr MONSUN F-CCT 63 T6 (A2:9)
mcr MONSUN F-CCT 63 T6 (A5:6)
mcr MONSUN F-CCT 71 M4 (A2:6)
mcr MONSUN F-CCT 71 M4 (A2:9)
mcr MONSUN F-CCT 71 M4 (A5:6)
mcr MONSUN F-CCT 71 T4 (A2:6)
mcr MONSUN F-CCT 71 T4 (A2:9)
mcr MONSUN F-CCT 71 T4 (A5:6)
mcr MONSUN F-CCT 71 T6 (A2:6)
mcr MONSUN F-CCT 71 T6 (A2:9)
mcr MONSUN F-CCT 71 T6 (A5:6)
mcr MONSUN F-CCT 80 T4 (A2:6)
mcr MONSUN F-CCT 80 T4 (A2:9)
mcr MONSUN F-CCT 80 T4 (A5:6)
mcr MONSUN F-CCT 80 T6 (A2:6)
mcr MONSUN F-CCT 80 T6 (A2:9)
mcr MONSUN F-CCT 80 T6 (A5:6)
mcr MONSUN F-CCT 90 T4 (A6:3)
mcr MONSUN F-CCT 90 T4 (A6:6)
mcr MONSUN F-CCT 90 T6 (A6:3)
mcr MONSUN F-CCT 90 T6 (A6:6)
mcr MONSUN F-CCT 100 T4 (A6:3)
mcr MONSUN F-CCT 100 T4 (A6:6)
mcr MONSUN F-CCT 100 T6 (A6:3)
mcr MONSUN F-CCT 100 T6 (A6:6)
mcr MONSUN F-CCT 112 T4 (A6:3)
mcr MONSUN F-CCT 112 T4 (A6:6)
mcr MONSUN F-CCT 112 T6 (A6:3)
mcr MONSUN F-CCT 112 T6 (A6:6)
mcr MONSUN F-CCT 125 T4 (A7:4)
mcr MONSUN F-CCT 125 T4 (A7:8)
mcr MONSUN F-CCT 125 T6 (A7:4)
mcr MONSUN F-CCT 125 T6 (A7:8)
mcr MONSUN F-CCT 45 T4/T8 (A0:6)
mcr MONSUN F-CCT 45 T4/T8 (A5:6)
mcr MONSUN F-CCT 50 T4/T8 (A0:6)
mcr MONSUN F-CCT 50 T4/T8 (A5:6)
mcr MONSUN F-CCT 56 T4/T8 (A2:6)
mcr MONSUN F-CCT 56 T4/T8 (A2:9)
mcr MONSUN F-CCT 56 T4/T8 (A5:6)
mcr MONSUN F-CCT 63 T4/T8 (A2:6)
mcr MONSUN F-CCT 63 T4/T8 (A2:9)
mcr MONSUN F-CCT 63 T4/T8 (A5:6)
mcr MONSUN F-CCT 71 T4/T8 (A2:6)
mcr MONSUN F-CCT 71 T4/T8 (A2:9)
mcr MONSUN F-CCT 71 T4/T8 (A5:6)
mcr MONSUN F-CCT 80 T4/T8 (A2:6)
mcr MONSUN F-CCT 80 T4/T8 (A2:9)
mcr MONSUN F-CCT 80 T4/T8 (A5:6)
mcr MONSUN F-CCT 90 T4/T8 (A6:3)
mcr MONSUN F-CCT 90 T4/T8 (A6:6)
mcr MONSUN F-CCT 100 T4/T8 (A6:3)
mcr MONSUN F-CCT 100 T4/T8 (A6:6)
mcr MONSUN F-CCT 112 T4/T8 (A6:3)
mcr MONSUN F-CCT 112 T4/T8 (A6:6)
mcr MONSUN F-CCT 125 T4/T8 (A7:4)
mcr MONSUN F-CCT 125 T4/T8 (A7:8)
