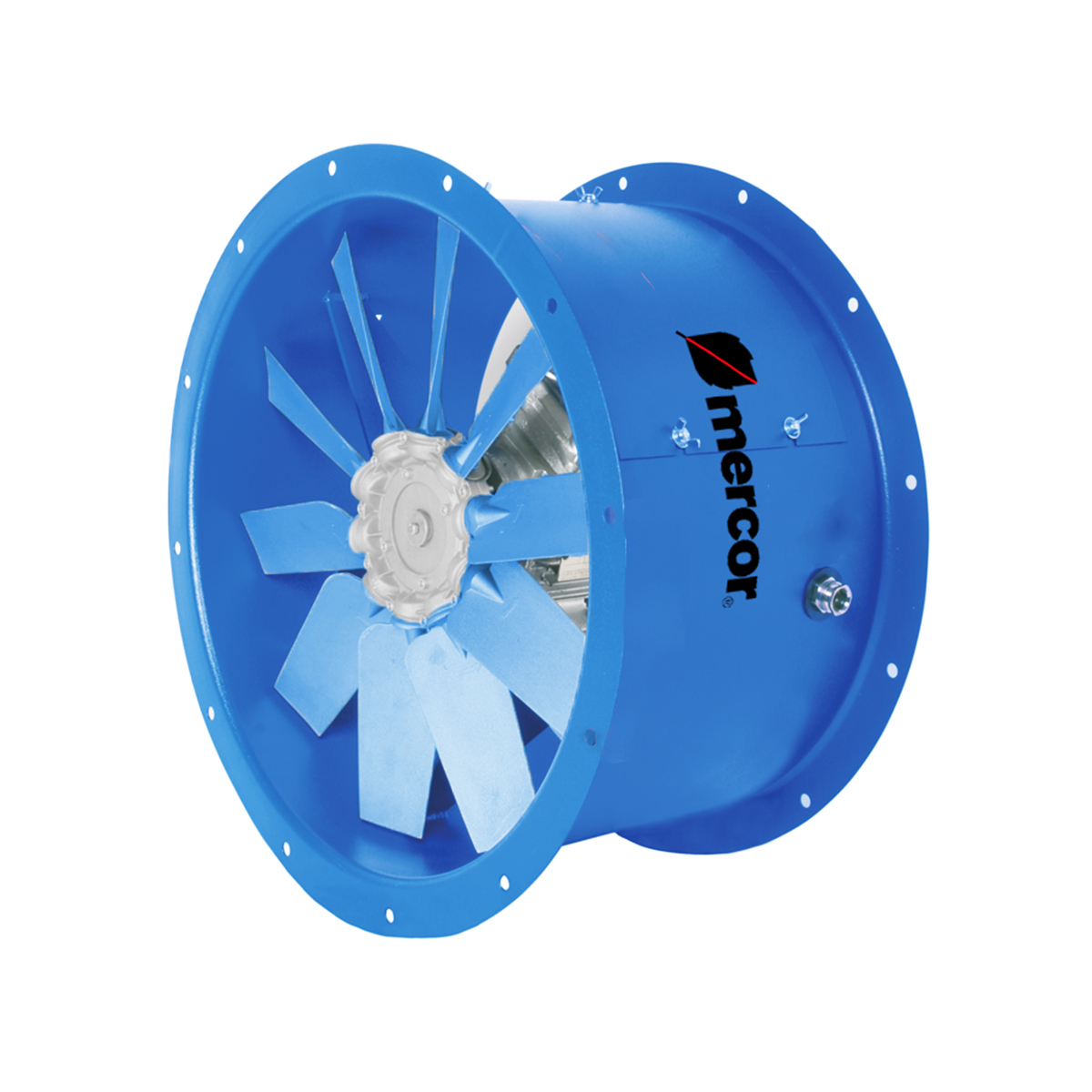

mcr Monsun F-CL

mcr Monsun F-CL

LONG CASE VARIABLE PITCHBLADES

MANUFACTURING FEATURES:
• Reinforced fan casing manufactured in rolling steel sheet.
• Motor-impeller modular assembly for complete versatility.
• Polyester powder finishing coat.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230V 50Hz for single phase motors, 230/400V 50Hz for three phase motors up to 4kW and 400/690V 50Hz for higher powers.
• mcr Monsun F-CL : Polypropylene impeller (A2 profile) or polyamide impeller reinforced with fibreglass (other profiles) with variable pitch angle.
• mcr Monsun F-CL AL : Cast aluminium impeller with variable pitch angle.

APPLICATIONS:
Designed for inline installation, they are suitable for:
• Air renewal in buildings and industries.
• Smoke extraction (max 50-60ºC).
• Maximum working temperature: 1ph 50ºC, 3ph 60ºC.

UNDER REQUEST:
• 100% reversible impeller.
• 60Hz fans and special voltages.
• Hot-dipped galvanised or stainless steel housing.

Code Name
mcr Monsun F-CL 35 M2 (A0:6)
mcr Monsun F-CL 35 M4 (A0:6)
mcr Monsun F-CL 35 T2 (A0:6)
mcr Monsun F-CL 35 T4 (A0:6)
mcr Monsun F-CL 35 T6 (A0:6)
mcr Monsun F-CL 40 M4 (A0:6)
mcr Monsun F-CL 40 T4 (A0:6)
mcr Monsun F-CL 40 T6 (A0:6)
mcr Monsun F-CL 45 M4 (A0:6)
mcr Monsun F-CL 45 M4 (A5:6)
mcr Monsun F-CL 45 T4 (A0:6)
mcr Monsun F-CL 45 T4 (A5:6)
mcr Monsun F-CL 45 T6 (A0:6)
mcr Monsun F-CL 45 T6 (A5:6)
mcr Monsun F-CL 50 M4 (A0:6)
mcr Monsun F-CL 50 M4 (A5:6)
mcr Monsun F-CL 50 T4 (A0:6)
mcr Monsun F-CL 50 T4 (A5:6)
mcr Monsun F-CL 50 T6 (A0:6)
mcr Monsun F-CL 50 T6 (A5:6)
mcr Monsun F-CL 56 M4 (A2:6)
mcr Monsun F-CL 56 M4 (A2:9)
mcr Monsun F-CL 56 M4 (A5:6)
mcr Monsun F-CL 56 T4 (A2:6)
mcr Monsun F-CL 56 T4 (A2:9)
mcr Monsun F-CL 56 T4 (A5:6)
mcr Monsun F-CL 56 T6 (A2:6)
mcr Monsun F-CL 56 T6 (A2:9)
mcr Monsun F-CL 56 T6 (A5:6)
mcr Monsun F-CL 63 M4 (A2:6)
mcr Monsun F-CL 63 M4 (A2:9)
mcr Monsun F-CL 63 M4 (A5:6)
mcr Monsun F-CL 63 T4 (A2:6)
mcr Monsun F-CL 63 T4 (A2:9)
mcr Monsun F-CL 63 T4 (A5:6)
mcr Monsun F-CL 63 T6 (A2:6)
mcr Monsun F-CL 63 T6 (A2:9)
mcr Monsun F-CL 63 T6 (A5:6)
mcr Monsun F-CL 71 M4 (A2:6)
mcr Monsun F-CL 71 M4 (A2:9)
mcr Monsun F-CL 71 M4 (A5:6)
mcr Monsun F-CL 71 T4 (A2:6)
mcr Monsun F-CL 71 T4 (A2:9)
mcr Monsun F-CL 71 T4 (A5:6)
mcr Monsun F-CL 71 T6 (A2:6)
mcr Monsun F-CL 71 T6 (A2:9)
mcr Monsun F-CL 71 T6 (A5:6)
mcr Monsun F-CL 80 T4 (A2:6)
mcr Monsun F-CL 80 T4 (A2:9)
mcr Monsun F-CL 80 T4 (A5:6)
mcr Monsun F-CL 80 T6 (A2:6)
mcr Monsun F-CL 80 T6 (A2:9)
mcr Monsun F-CL 80 T6 (A5:6)
mcr Monsun F-CL 90 T4 (A6:3)
mcr Monsun F-CL 90 T4 (A6:6)
mcr Monsun F-CL 90 T6 (A6:3)
mcr Monsun F-CL 90 T6 (A6:6)
mcr Monsun F-CL 100 T4 (A6:3)
mcr Monsun F-CL 100 T4 (A6:6)
mcr Monsun F-CL 100 T6 (A6:3)
mcr Monsun F-CL 100 T6 (A6:6)
mcr Monsun F-CL 112 T4 (A6:3)
mcr Monsun F-CL 112 T4 (A6:6)
mcr Monsun F-CL 112 T6 (A6:3)
mcr Monsun F-CL 112 T6 (A6:6)
mcr Monsun F-CL 125 T4 (A7:4)
mcr Monsun F-CL 125 T4 (A7:8)
mcr Monsun F-CL 125 T6 (A7:4)
mcr Monsun F-CL 125 T6 (A7:8)
mcr Monsun F-CL 35 T4/T8 (A0:6)
mcr Monsun F-CL 40 T4/T8 (A0:6)
mcr Monsun F-CL 45 T4/T8 (A0:6)
mcr Monsun F-CL 45 T4/T8 (A5:6)
mcr Monsun F-CL 50 T4/T8 (A0:6)
mcr Monsun F-CL 50 T4/T8 (A5:6)
mcr Monsun F-CL 56 T4/T8 (A2:6)
mcr Monsun F-CL 56 T4/T8 (A2:9)
mcr Monsun F-CL 56 T4/T8 (A5:6)
mcr Monsun F-CL 63 T4/T8 (A2:6)
mcr Monsun F-CL 63 T4/T8 (A2:9)
mcr Monsun F-CL 63 T4/T8 (A5:6)
mcr Monsun F-CL 71 T4/T8 (A2:6)
mcr Monsun F-CL 71 T4/T8 (A2:9)
mcr Monsun F-CL 71 T4/T8 (A5:6)
mcr Monsun F-CL 80 T4/T8 (A2:6)
mcr Monsun F-CL 80 T4/T8 (A2:9)
mcr Monsun F-CL 80 T4/T8 (A5:6)
mcr Monsun F-CL 90 T4/T8 (A6:3)
mcr Monsun F-CL 90 T4/T8 (A6:6)
mcr Monsun F-CL 100 T4/T8 (A6:3)
mcr Monsun F-CL 100 T4/T8 (A6:6)
mcr Monsun F-CL 112 T4/T8 (A6:3)
mcr Monsun F-CL 112 T4/T8 (A6:6)
mcr Monsun F-CL 125 T4/T8 (A7:4)
mcr Monsun F-CL 125 T4/T8 (A7:8)
