mcr MONSUN T-CL

mcr MONSUN T-CL

mcr MONSUN T-CL

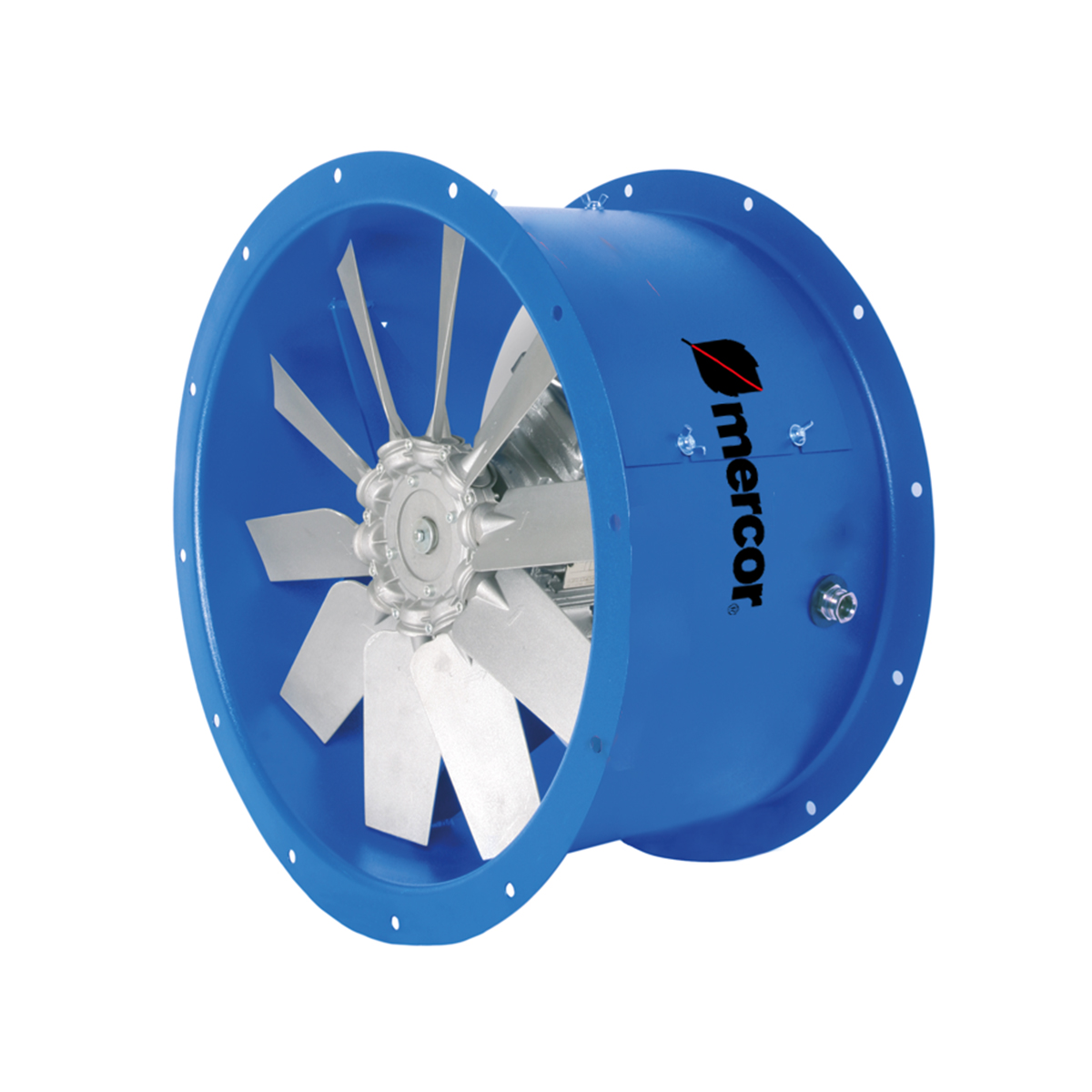

Axial Smoke Extraction Fan



Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7524



The mcr MONSUN T-CL axial smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings. The device protects the building structure and prevents fire from spreading to unaffected rooms. The fan is intended for emergency smoke extraction, with the motor located in the hazard zone. The housing is equipped with inspection doors for motor access and has a polyester powder-coated finish.



Technical data:

  •          Dimensions: D400 - D1600 [mm]
  •          Protection rating: IP 55
  •          Nominal power: 0.55 kW – 75 kW
  •          Rotational speed: 750; 1000; 1500; 3000 rpm
  •          Operating mode: unidirectional, reversible
  •          Execution type: single-speed, two-speed



Additional information:

  •          Operation inside and outside the smoke reservoir
  •          Reinforced round housing
  •          Fan available in EX (ATEX) version
Code Name
mcr MONSUN T-CL 45 T2 (A8:6) F400
mcr MONSUN T-CL 45 T2 (A8:9) F400
mcr MONSUN T-CL 45 T4 (A5:6) F400
mcr MONSUN T-CL 45 T6 (A5:6) F400
mcr MONSUN T-CL 50 T2 (A8:6) F400
mcr MONSUN T-CL 50 T2 (A8:9) F400
mcr MONSUN T-CL 50 T4 (A5:6) F400
mcr MONSUN T-CL 50 T6 (A5:6) F400
mcr MONSUN T-CL 56 T2 (A8:6) F400
mcr MONSUN T-CL 56 T2 (A8:9) F400
mcr MONSUN T-CL 56 T4 (A5:6) F400
mcr MONSUN T-CL 56 T6 (A5:6) F400
mcr MONSUN T-CL 63 T4 (A5:6) F400
mcr MONSUN T-CL 63 T6 (A5:6) F400
mcr MONSUN T-CL 71 T4 (A5:6) F400
mcr MONSUN T-CL 71 T6 (A5:6) F400
mcr MONSUN T-CL 80 T4 (A5:6) F400
mcr MONSUN T-CL 80 T6 (A5:6) F400
mcr MONSUN T-CL 90 T4 (A3:4) F400
mcr MONSUN T-CL 90 T4 (A3:8) F400
mcr MONSUN T-CL 90 T6 (A3:4) F400
mcr MONSUN T-CL 90 T6 (A3:8) F400
mcr MONSUN T-CL 100 T4 (A3:4) F400
mcr MONSUN T-CL 100 T4 (A3:8) F400
mcr MONSUN T-CL 100 T6 (A3:4) F400
mcr MONSUN T-CL 100 T6 (A3:8) F400
mcr MONSUN T-CL 112 T4 (A3:4) F400
mcr MONSUN T-CL 112 T4 (A3:8) F400
mcr MONSUN T-CL 112 T6 (A3:4) F400
mcr MONSUN T-CL 112 T6 (A3:8) F400
mcr MONSUN T-CL 125 T4 (A3:4) F400
mcr MONSUN T-CL 125 T4 (A3:8) F400
mcr MONSUN T-CL 125 T6 (A3:4) F400
mcr MONSUN T-CL 125 T6 (A3:8) F400
mcr MONSUN T-CL 45 T2 (A8:12) F400
mcr MONSUN T-CL 50 T2 (A8:12) F400
mcr MONSUN T-CL 56 T2 (A8:12) F400
mcr MONSUN T-CL 45 T2/T4 (A8:6) F400
mcr MONSUN T-CL 45 T2/T4 (A8:9) F400
mcr MONSUN T-CL 45 T4/T8 (A5:6) F400
mcr MONSUN T-CL 50 T2/T4 (A8:6) F400
mcr MONSUN T-CL 50 T2/T4 (A8:9) F400
mcr MONSUN T-CL 50 T4/T8 (A5:6) F400
mcr MONSUN T-CL 56 T2/T4 (A8:6) F400
mcr MONSUN T-CL 56 T2/T4 (A8:9) F400
mcr MONSUN T-CL 56 T4/T6 (A5:6) F400
mcr MONSUN T-CL 56 T4/T8 (A5:6) F400
mcr MONSUN T-CL 63 T4/T6 (A5:6) F400
mcr MONSUN T-CL 63 T4/T8 (A5:6) F400
mcr MONSUN T-CL 71 T4/T6 (A5:6) F400
mcr MONSUN T-CL 71 T4/T8 (A5:6) F400
mcr MONSUN T-CL 80 T4/T6 (A5:6) F400
mcr MONSUN T-CL 80 T4/T8 (A5:6) F400
mcr MONSUN T-CL 90 T4/T6 (A3:4) F400
mcr MONSUN T-CL 90 T4/T6 (A3:8) F400
mcr MONSUN T-CL 90 T4/T8 (A3:4) F400
mcr MONSUN T-CL 90 T4/T8 (A3:8) F400
mcr MONSUN T-CL 100 T4/T6 (A3:4) F400
mcr MONSUN T-CL 100 T4/T6 (A3:8) F400
mcr MONSUN T-CL 100 T4/T8 (A3:4) F400
mcr MONSUN T-CL 100 T4/T8 (A3:8) F400
mcr MONSUN T-CL 112 T4/T6 (A3:4) F400
mcr MONSUN T-CL 112 T4/T6 (A3:8) F400
mcr MONSUN T-CL 112 T4/T8 (A3:4) F400
mcr MONSUN T-CL 112 T4/T8 (A3:8) F400
mcr MONSUN T-CL 125 T4/T6 (A3:4) F400
mcr MONSUN T-CL 125 T4/T6 (A3:8) F400
mcr MONSUN T-CL 125 T4/T8 (A3:4) F400
mcr MONSUN T-CL 125 T4/T8 (A3:8) F400
mcr MONSUN T-CL 45 T2/T4 (A8:12) F400
mcr MONSUN T-CL 50 T2/T4 (A8:12) F400
mcr MONSUN T-CL 56 T2/T4 (A8:12) F400
