mcr MONSUN T-CS

mcr MONSUN T-CS

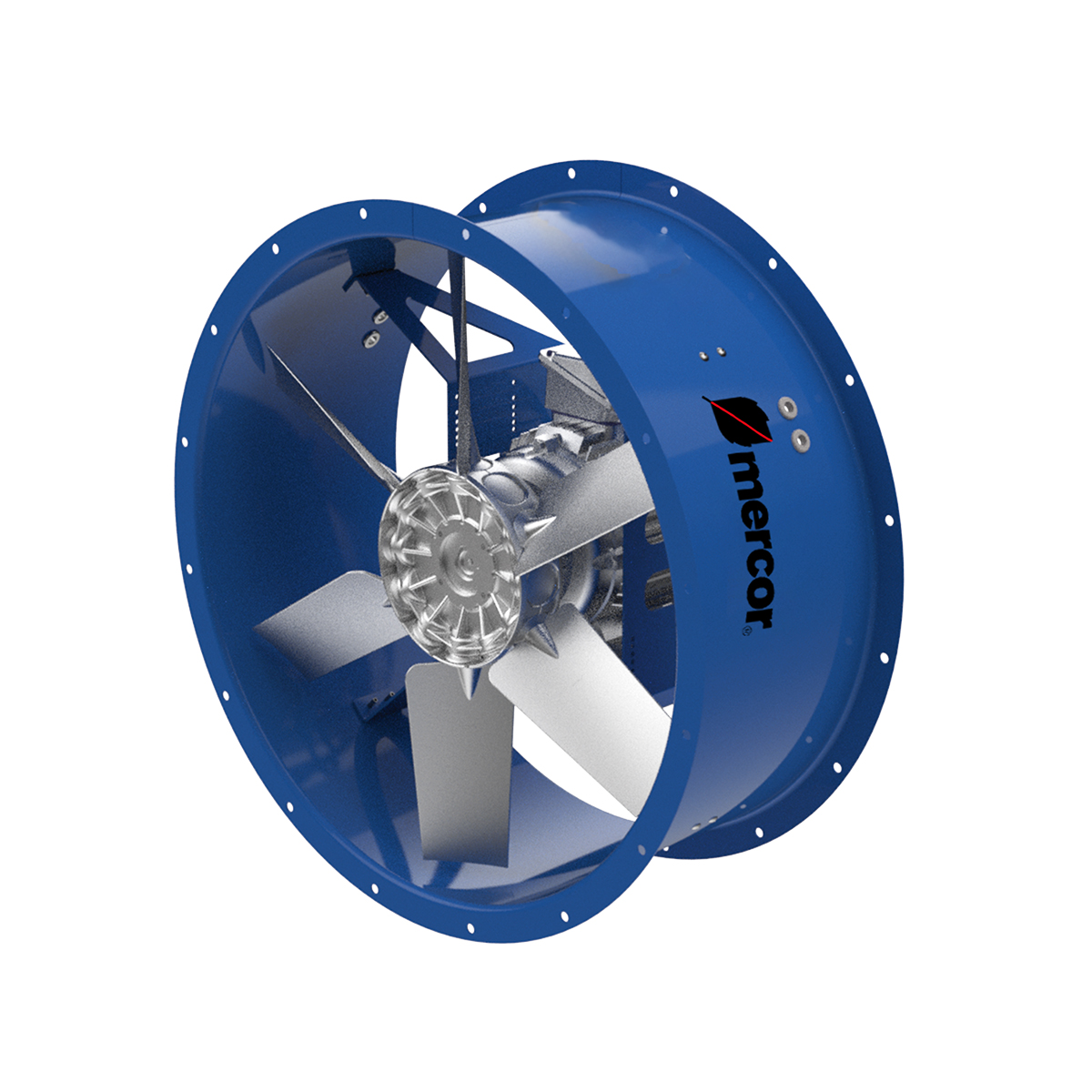

Axial Smoke Extraction Fan

Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7525

The mcr MONSUN T-CS axial smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings. The device protects the building structure and prevents fire from spreading to unaffected rooms. The fan is intended for emergency smoke extraction, with the motor located in the hazard zone. The housing has a polyester powder-coated finish. The device allows both unidirectional and reversible operation.

Technical data:

•          Dimensions: D400 - D1600 [mm]
•          Protection rating: IP 55
•          Nominal power: 0.55 kW – 75 kW
•          Rotational speed: 750; 1000; 1500; 3000 rpm
•          Operating mode: unidirectional, reversible
•          Execution type: single-speed, two-speed

Additional information:

•          Operation inside and outside the smoke reservoir
•          Reinforced round housing
•          Fan available in EX (ATEX) version
