mcr MONSUN T-CW

mcr MONSUN T-CW

mcr MONSUN T-CW

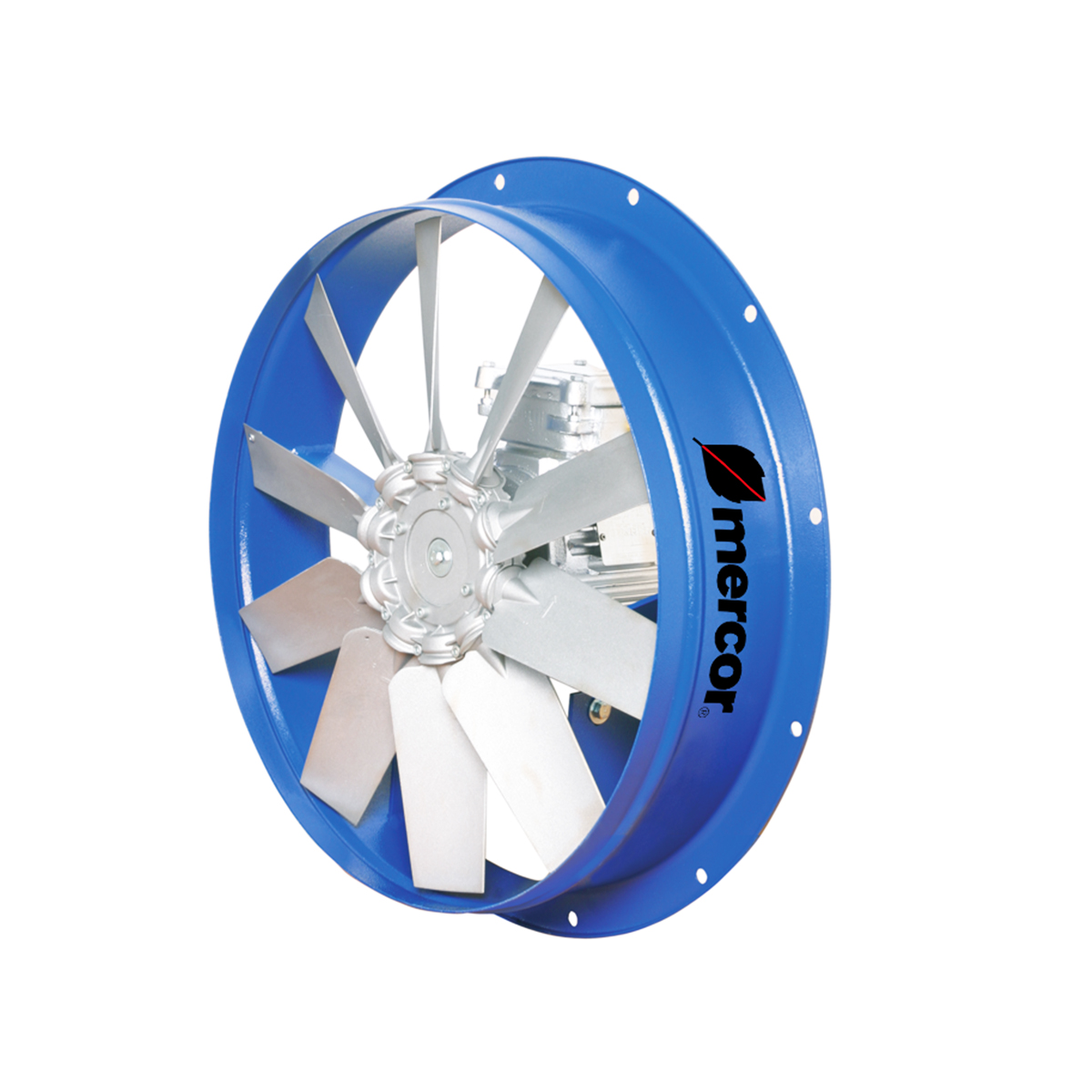

Axial Wall-mounted Smoke Extraction Fan



Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7522



The mcr MONSUN T-CW axial wall-mounted smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings. The fan can be mounted on a wall or in a duct. The housing has an epoxy powder-coated finish.



Technical data:

  •          Dimensions: D450 - D1250 [mm]
  •          Protection rating: IP 55
  •          Nominal power: 0.75 kW – 45 kW
  •          Rotational speed: 750; 1500 rpm
  •          Operating mode: unidirectional, reversible
  •          Execution type: single-speed, two-speed



Additional information:

  •          Operation inside and outside the smoke reservoir
  •          Reinforced round housing
  •          Polyester powder-coated finish
  •          Fan available in EX (ATEX) version
Code Name
mcr MONSUN T-CW 45 T4 (A5:6) F400
mcr MONSUN T-CW 45 T6 (A5:6) F400
mcr MONSUN T-CW 50 T4 (A5:6) F400
mcr MONSUN T-CW 50 T6 (A5:6) F400
mcr MONSUN T-CW 56 T4 (A5:6) F400
mcr MONSUN T-CW 56 T6 (A5:6) F400
mcr MONSUN T-CW 63 T4 (A5:6) F400
mcr MONSUN T-CW 63 T6 (A5:6) F400
mcr MONSUN T-CW 71 T4 (A5:6) F400
mcr MONSUN T-CW 71 T6 (A5:6) F400
mcr MONSUN T-CW 80 T4 (A5:6) F400
mcr MONSUN T-CW 80 T6 (A5:6) F400
mcr MONSUN T-CW 90 T4 (A3:4) F400
mcr MONSUN T-CW 90 T4 (A3:8) F400
mcr MONSUN T-CW 90 T6 (A3:4) F400
mcr MONSUN T-CW 90 T6 (A3:8) F400
mcr MONSUN T-CW 100 T4 (A3:4) F400
mcr MONSUN T-CW 100 T4 (A3:8) F400
mcr MONSUN T-CW 100 T6 (A3:4) F400
mcr MONSUN T-CW 100 T6 (A3:8) F400
mcr MONSUN T-CW 112 T4 (A3:4) F400
mcr MONSUN T-CW 112 T4 (A3:8) F400
mcr MONSUN T-CW 112 T6 (A3:4) F400
mcr MONSUN T-CW 112 T6 (A3:8) F400
mcr MONSUN T-CW 125 T4 (A3:4) F400
mcr MONSUN T-CW 125 T4 (A3:8) F400
mcr MONSUN T-CW 125 T6 (A3:4) F400
mcr MONSUN T-CW 125 T6 (A3:8) F400
mcr MONSUN T-CW 45 T4/T8 (A5:6) F400
mcr MONSUN T-CW 50 T4/T8 (A5:6) F400
mcr MONSUN T-CW 56 T4/T8 (A5:6) F400
mcr MONSUN T-CW 63 T4/T8 (A5:6) F400
mcr MONSUN T-CW 71 T4/T8 (A5:6) F400
mcr MONSUN T-CW 80 T4/T8 (A5:6) F400
mcr MONSUN T-CW 90 T4/T8 (A3:4) F400
mcr MONSUN T-CW 90 T4/T8 (A3:8) F400
mcr MONSUN T-CW 100 T4/T8 (A3:4) F400
mcr MONSUN T-CW 100 T4/T8 (A3:8) F400
mcr MONSUN T-CW 112 T4/T8 (A3:4) F400
mcr MONSUN T-CW 112 T4/T8 (A3:8) F400
mcr MONSUN T-CW 125 T4/T8 (A3:4) F400
mcr MONSUN T-CW 125 T4/T8 (A3:8) F400
