mcr MONSUN T-CCT

mcr MONSUN T-CCT

mcr MONSUN T-CCT

Axial Smoke Extraction Fan



Fire resistance class: F400 – 400°C / 120 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

CSWU: 0370-CPR-7523

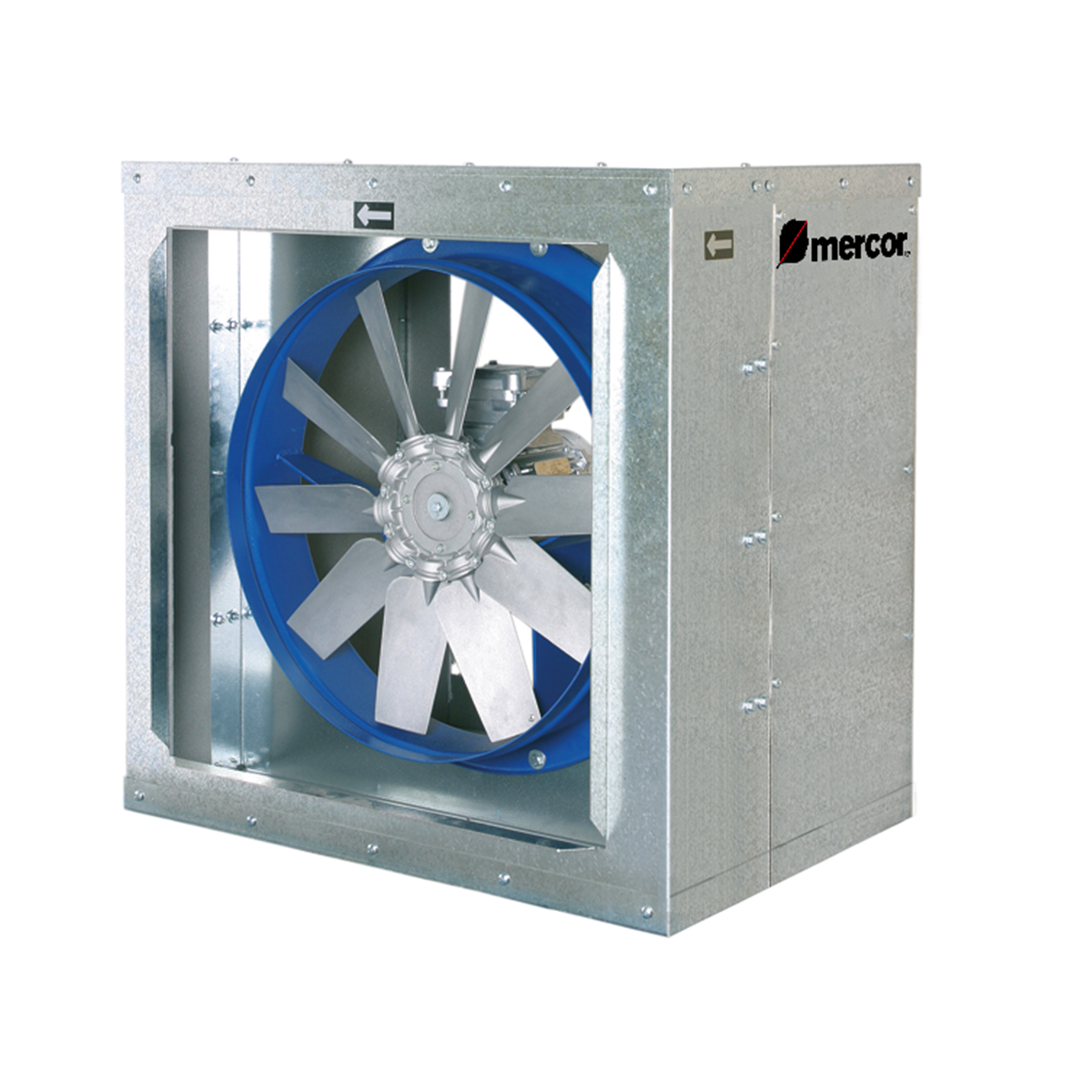

The mcr MONSUN T-CCT axial smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings. The fan features a sound-absorbing galvanized steel casing with special removable insulation panels for easy access to the motor and convenient maintenance. The housing has an epoxy powder-coated finish.

Technical data:

  •          Dimensions: D400 - D1250 [mm]
  •          Protection rating: IP 55
  •          Nominal power: 0.55 kW – 37 kW
  •          Rotational speed: 750; 1000; 1500; 3000 rpm
  •          Operating mode: unidirectional, reversible
  •          Execution type: single-speed, two-speed



Additional information:

  •          Operation inside and outside the smoke reservoir
  •          Box-type housing, thermally and acoustically insulated
  •          Fan available in EX (ATEX) version
Code Name
mcr MONSUN T-CCT 45 T4 (A5:6) F400
mcr MONSUN T-CCT 45 T6 (A5:6) F400
mcr MONSUN T-CCT 50 T4 (A5:6) F400
mcr MONSUN T-CCT 50 T6 (A5:6) F400
mcr MONSUN T-CCT 56 T4 (A5:6) F400
mcr MONSUN T-CCT 56 T6 (A5:6) F400
mcr MONSUN T-CCT 63 T4 (A5:6) F400
mcr MONSUN T-CCT 63 T6 (A5:6) F400
mcr MONSUN T-CCT 71 T4 (A5:6) F400
mcr MONSUN T-CCT 71 T6 (A5:6) F400
mcr MONSUN T-CCT 80 T4 (A5:6) F400
mcr MONSUN T-CCT 80 T6 (A5:6) F400
mcr MONSUN T-CCT 90 T4 (A3:4) F400
mcr MONSUN T-CCT 90 T4 (A3:8) F400
mcr MONSUN T-CCT 90 T6 (A3:4) F400
mcr MONSUN T-CCT 90 T6 (A3:8) F400
mcr MONSUN T-CCT 100 T4 (A3:4) F400
mcr MONSUN T-CCT 100 T4 (A3:8) F400
mcr MONSUN T-CCT 100 T6 (A3:4) F400
mcr MONSUN T-CCT 100 T6 (A3:8) F400
mcr MONSUN T-CCT 112 T4 (A3:4) F400
mcr MONSUN T-CCT 112 T4 (A3:8) F400
mcr MONSUN T-CCT 112 T6 (A3:4) F400
mcr MONSUN T-CCT 112 T6 (A3:8) F400
mcr MONSUN T-CCT 125 T4 (A3:4) F400
mcr MONSUN T-CCT 125 T4 (A3:8) F400
mcr MONSUN T-CCT 125 T6 (A3:4) F400
mcr MONSUN T-CCT 125 T6 (A3:8) F400
mcr MONSUN T-CCT 45 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 50 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 56 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 63 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 71 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 80 T4/T8 (A5:6) F400
mcr MONSUN T-CCT 90 T4/T8 (A3:4) F400
mcr MONSUN T-CCT 90 T4/T8 (A3:8) F400
mcr MONSUN T-CCT 100 T4/T8 (A3:4) F400
mcr MONSUN T-CCT 100 T4/T8 (A3:8) F400
mcr MONSUN T-CCT 112 T4/T8 (A3:4) F400
mcr MONSUN T-CCT 112 T4/T8 (A3:8) F400
mcr MONSUN T-CCT 125 T4/T8 (A3:4) F400
mcr MONSUN T-CCT 125 T4/T8 (A3:8) F400
